詳細情報 |
|||
| オペレーティング·システム: | Linux | 制御方法: | タッチコントロール、GUI |
|---|---|---|---|
| Gセンサ: | 3軸加速度センサーを内蔵 | 動作温度: | 20°Cから+70°C |
| 動作湿度: | 10%～90% | サイズ: | 250mm×170mm×35mm |
| ビデオ入力: | 5チャンネル AHD1080P/720P | ビデオ標準: | H.264 圧縮形式、PAL/NTSC システム |
| ハイライト: | 4G Mobile DVR with AI algorithms,5 channel AHD vehicle DVR,JT T808 protocol mobile DVR |
||
製品の説明

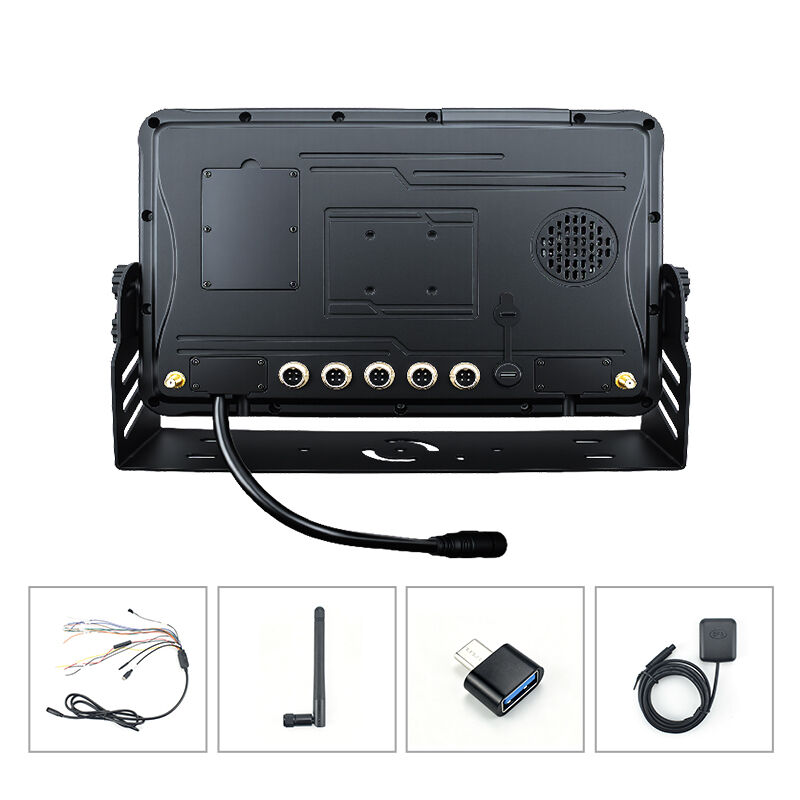

4G Mobile DVR Supporting 5 Channel AHD 1080P 720P Display JT T808 Protocols and AI Algorithms for Vehicle Monitoring
1. LINUX system 4.19.73;
2. Support 4G networking, AP, STA, and satellite positioning;
3. Supports 5-channel AHD 1080P/720P, built-in 720P high-definition display screen, PAL standard, H.264 compression format
4. Support JT/T808-2013, JT/T808-2019, JT/T1076-2016, JT/T1078-2016;
5. Support real-time video playback, historical video playback, interface display capture, emergency alarm, TTS text information distribution and other functions;
6. Support AI algorithms such as ADAS/DMS/BSD facial recognition;
7. Single SD card can support up to 512GB (optional MSATA hard drive is available; Max 4T)
8. Support rapid acceleration/deceleration/sharp turn alarm, collision alarm
9. After ACC OFF is supported, the low-power sleep mode can be remotely awakened
10. Voice support for intercom/monitoring
11. Support dual IP reporting
12. 5-way alarm input (ACC, left turn, right turn, Input, SOS one key alarm)
13. 2-channel RS232 interface, expandable card reader, fuel sensor, etc. (reserved on the motherboard)
14. 3-channel low-level output (supports remote oil and power cut-off function, can be connected to a relay) optional
15. Switching between Chinese/English language and large screen language
16. Adaptive wide power input, with protection functions such as overload, undervoltage, short circuit, and reverse connection; Support timed power on/off, delayed shutdown function DC:+9V ~ +36V
17. 25*17*3.5 (CM),1.45 (KG)
| Model | OX-MV705A |
| Operating System | Linux |
| Control Method | Touch Control, GUI |
| Hardware Architecture | 32-bit RISC CPU 1GHz, 1T NPU, 2Gb DDR3, 128Mb NAND Flash |
| Video Input | 5-channel AHD1080P/720P |
| Video Standard | H.264 compression format, PAL/NTSC systems |
| Preview Function | Single channel,5-screen split view, supports manual/event-triggered full-screen display function |
| Recording Quality | Main stream resolution: 1920 * 1080/1280 * 720, frame rate: 1-25 fps, bit rate: 256Kbps~6Mbps. Sub-stream resolution: 720 * 576/720 * 480/640 * 360, frame rate: 1-15 fps, bit-rate: 256Kbps~2Mbps |
| Recording Mode | Default auto-recording, supports ignition-triggered recording, alarm recording, time-lapse recording,event-triggered short clips, etc. |
| Audio Parameters | AAC/G.711A compression format, audio and video synchronous recording. 1-channel audio input, CH1/CH2 built-in MIC; 1-channel audio output, built-in speaker (≤8Ω 1.5W) |
| Alarm Input | 5-channel alarm input (ACC, left turn, right turn, Input, SOS one-key alarm) |
| Alarm Output | 3-channel low-level output (supports remote fuel/power cutoff function, connectable to relays). Optional. |
| Communication Interface | 2-channel RS232 interface, expandable for card readers, fuel sensors, etc. (onboard reserved interfaces) |
| 4G Communication | Built-in 4G wireless transmission, supports voice calls,low-power heartbeat packet transmission. CAT4 CN version full frequency bands: TDD LTE: B34/B38/B39/B40/B41, FDD LTE: B1/B3/B5/B8, WCDMA: B1/B8. European version: TDD LTE: B38/B40/B41, FDD LTE: B1/B3/B7/B8/B20/B28, WCDMA: B1/B8 |
| WiFi Communication | WiFi: Wireless 802.11b/g/n 2.4G (built-in antenna) |
| Satellite Positioning | Built-in GPS/BDSsatellite positioning module |
| G-sensor | Built-in 3-axis accelerometer |
