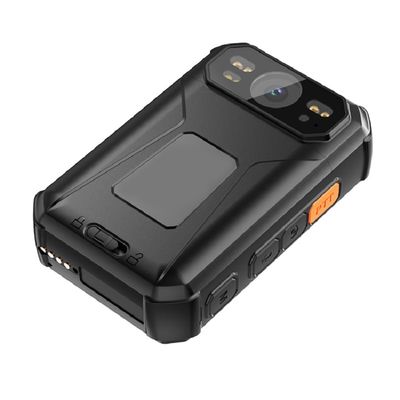

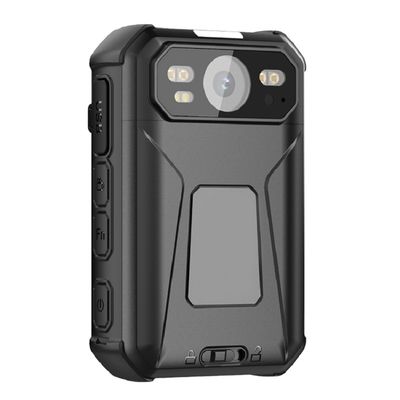

4G 2K Body Worn Camera 2.4 Inch Touch screen Android 12 System

Features:
High Level Protection
-IP67, adaptive to various environments
-2 meters drop protection
Excellent Video Transmission
-4G / Wi-Fi transmission, improves the video stream continuity under unstable network conditions
-H.264 / H.265 video compression, saves up to 50% bandwidth and storage
High Quality Image
-Night view with LED and IR
-High definition 2560*1440p@30fps
Recognition Functions
-Support face recognition(optional)
-Built-in face comparison algorithm, offline alarm
Abundant Functions and Features
-2.4” IPS touchscreen display
-Various shortcut button, additional customized function button
-Support location function by GPS, GLONASS
-Support external memory
Multimedia function:
-Support cluster PTT intercom
-Support functions such as video recording, QR code scanning, TTS, etc
-Support file upload to cloud servers and support breakpoint resume function

• Specifications

Model	OX-ZP407G
Operation System	Operation System	Android 12.0
CPU	CPU	MT6769 8 Cores CPU 64 bit, 2.0GHz.
Memory	RAM+ROM	Standard 2GB+16GB
Main Camera Lens	Image Sensor	1/3" progressive scan CMOS
	Max. Recording Resolution	2560 × 1440
	Day & Night	Switch IR cut filter automatically
	FOV	Horizontal FOV: 108°, Vertical FOV: 67°, Diagonal FOV: 138°
	TV-Distortion	<18.5%
	Focal Length	3.3 mm fixed lens
	Aperture	2.6
Lens	Rear Camera Lens	2MP(optional)
Video	Video Compression	H.264, H.265
	Main Stream	2560×1440/30fps,1920×1080/30fps,1280×720/30fps,640×480/30fps
	Sub-Stream	2560×1440/30fps,1920×1080/30fps,1280×720/30fps,640×480/30fps
	Video Format	MP4, PS
	Pre-record & Post-record	Pre-record: 60/10/5/3 s,(Optional)
		Post-record: 60/10/5/3 s(Optional)
Image	Resolution	64M, 48M, 32M, 16M, 8M, 4M
	Image Format	JPEG
Audio	Audio Compression for Video Recording	AAC, G711
	Audio Compression for Audio Recording	MP3,AMR,WAE
	Audio Compression for Group Intercom	OPUS,G711
	Audio Bit Rate	AMR (12 kbps), AAC (128 kbps), MP3 (128 kbps), G711 (192 kbps),OPUS(13 kbps)
Image Stabilization Algorithm	EIS	Optional
Screen	Screen Size	2.4"
	Touchscreen	Support
	Display Resolution	640 × 480
	Screen Brightness	Typical value: 350 cd/m²
IR	IR Range	Up to 10 m, Illumination range greater than 90%
Network Parameters	Wireless Network	2.4G/5.8G Wifi 5 ac, support IEEE802.11 ac/a/b/g/n
	Bluetooth	BT5.0
	Positioning Mode	GPS
	4G	LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28A
		LTE TDD: B34/B38/B39/B40/B41
		WCDMA:B1/B5/B8
Others Parameters	NFC	Optional
	Gyroscope	Built in
	G-Sensor	Built in
	White Light	Built in
	Laser Light	Optional
	Red/Blue Flashing Light	Built in
Network Protocol	Protocol	RTSP,Onvif, MCS8, FTP
	API	SDK
Security	Encryption	AES256
	Watermark	Support
Software Functions	Smart Functions	Face Picture Capture(Optional)
		Face Picture Recognition(Optional)
		License Plate Recognition(Optional)
	Basic Event	SOS alarm
	Group Intercom	Support
	Voice Broadcast	Support TTS voice broadcast(Optional)
	File Upload	Support OSS object storage and file upload
	Video Intercom	Support video call between multiple devices(Optional)
	Voice Call	Support voice call between multiple devices(Optional)
	Message Delivery	Support platform-to-device messaging of messages, files, and other content(Optional)
	Software Upgrade	Support OTA firmware or app upgrades
	External Camera	Support up to 1080P USB cameras(Optional)
Battery	Battery Life	Up to 10 h in 1080p resolution¹

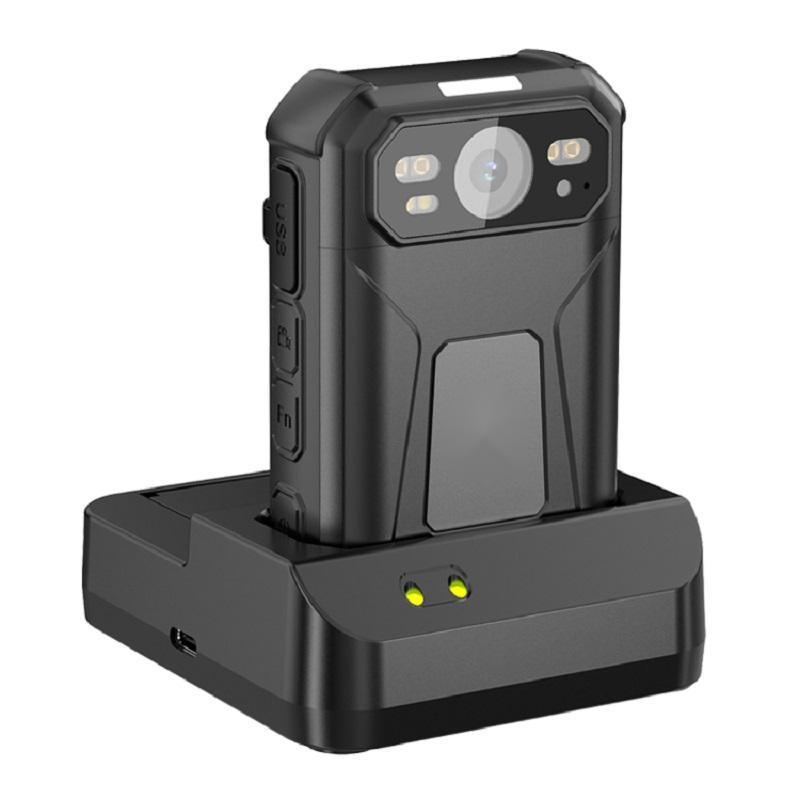

	Charging Method	Type C/Charging Stand(optional)
	Embedded Sub-Battery	60mAh
	Capacity	3050mAh
	Battery Type	Lithium-ion battery, removable
	Charging Time	≤ 4 h
General	Power	5 V DC, 2.0 A
	Charging Interface	Type-C, Pogo Pin
	Mic	Built-in 2 mic(s)
	Speaker	1 speaker(s),max. power consumption: 1.5 W
	USB	Type-C
	SIM Card	1 Nano-SIM card(s)
	TF Card	1 TF card, standard 64GB, 128GB/ 256GB /512GB optional
	Button	PTT, Power on/off, Video recording, Audio recording, Snapshot, Event tag, Customized function
	Dimensions	91.8 x 59.8 x 25.3mm
	Weight	166g, 180g with clip
